₨9,500.00

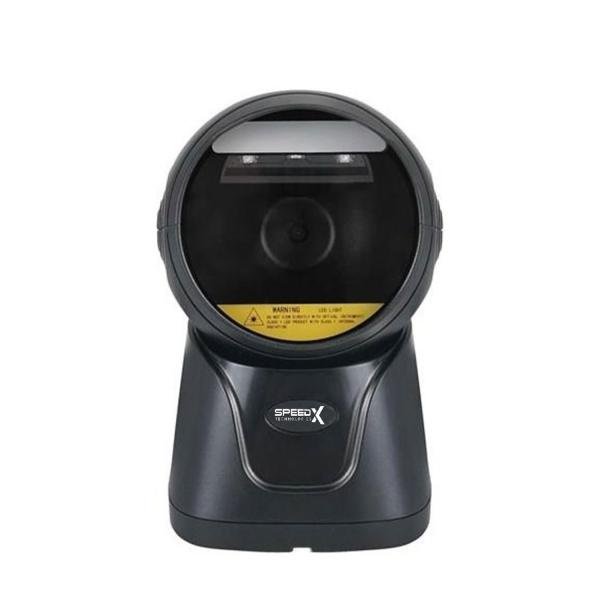

Speed-x 9600 2d Desktop Barcode Scanner
Description
| Technical Specifications | |
| Electrical Characteristics | |
| Interface Supported | USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±5% |
| Current | Max:335mA |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640 X 480 Pixels |
| Light Source | white LED |
| Decoding speed | 60FPS |
| Performance Characteristics | |
| Scanning Angle | Pitch angle:±65°;Skew angle:±65°;Tilt angle:±360° |
| Field of View | 36H),27V) |
| Min Resolution | 4mil |
| Min .PCS value | ?20% UPC/EAN 13?13mil? |
| Language | Multiple Languages |
| Data Edition | Support for custom data output |
| Decode Capability | 1D:Codabar,Code39,Interleaved2of5,NEC2of5,Code93 ,Straight 2 of 5 Industial,Straight 2 of 5 IATA ,Matrix 2 of 5 ,Code 11,Code128,GS1-128,UPC-A,UPC-E0,UPC-E1,EAN/JAN-13,EAN/JAN-8,MSI,GS1-DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded ,
China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8,Korea Post 2D?PDF417,QR Code,Data Matrix,Aztec code,HanXin code,MaxiCodeMaxi code,Micro PDF417 |
| Physical Characteristics | |
| Dimensions | 94mm*100mm*152mm(L*W*H) |
| Weight | 260g |
| Indicator | Beeper, LED |
| Environmental Characteristics | |
| Temperature | -20°?60°C (operation)
-30°?70°C (storage) |
| Humidity | Relative humidity: 5% to 95% (no condensation) |
| Shock Drop Test | 1.5m drop onto concrete surface |
Decoding Depth of Field
| Symbology | Resolution | Nearest | Farthest |
| Code 39 | 5mil | 10mm | 90mm |
| Code 39 | 13mil | 0mm | 175mm |
| UPC-A | 3.34mil | 10mm | 170mm |
| QR | 20mil | 0mm | 130mm |
| QR | 30mil | 0mm | 180mm |
| Pay Code?QR 3*3cm? | – | 10mm | 320mm |
| Pay Code?QR 2.3*2.3cm? | – | 0mm | 260mm |
